Create EC2 Instance

Amazon EC2

Amazon Elastic Compute Cloud (Amazon EC2) is a service that provides virtual servers (cloud servers) on the Amazon Web Services (AWS) cloud platform. It allows you to easily rent and use computing resources as needed, instead of purchasing and maintaining physical servers.

What is an Amazon EC2 Instance?

An Amazon EC2 Instance is a virtual server (cloud server) running on Amazon EC2 infrastructure. With an AWS account, you can create multiple EC2 Instances to run applications, store data, or handle other tasks. EC2 Instances operate on the same physical server system and share resources such as CPU, RAM, and storage.

EC2 Deployment Model in the Workshop

• In this Workshop, we will create an EC2 Instance to:
  • Run the backend (Node.js, Express.js): Handle API and business logic.
  • Connect with DocumentDB: Retrieve and store data.
  • Communicate with the frontend: Receive requests from ReactJS and respond with data.
  • Secure the system: Open only necessary ports and connect DocumentDB within a Private Subnet.

Why choose t2.micro:

• Low cost: A Free Tier instance (free within AWS Free Tier limits), suitable for learning or experimentation.
• Basic resources: Includes 1 vCPU and 1GB RAM, sufficient for running simple Golang applications or testing basic AWS services.
• Burstable Performance: Can boost performance when needed, useful for applications with variable loads.

Reasons for Choosing Ubuntu:

• High Compatibility: Ubuntu supports many popular software and tools, making it suitable for deploying web applications, Golang, Docker, and Kubernetes.
• LTS (Long Term Support): Ubuntu 24.04 LTS offers long-term support, ensuring system stability over an extended period.
• Frequent Updates: Ubuntu receives regular updates, enhancing security and stability.

Creating an EC2 Instance

1. Access AWS Console

• Open a browser and go to the Amazon EC2 console at https://console.aws.amazon.com/ec2/.

2. In the Dashboard, select Launch instance

3. Name the instance

• In the Name and tags section:
• Name: blog-ec2

4. Select an image (Amazon Machine Image - AMI)

• Under Application and OS Images (Amazon Machine Image), follow these steps:
  • Select Quick Start, then choose Ubuntu as the operating system (OS) for your instance.
  • From Amazon Machine Image (AMI), select Ubuntu 24.04 LTS HVM. Note that this AMI is marked as Free tier eligible.
  • An Amazon Machine Image (AMI) is a basic configuration used as a template for your instance.

5. Choose an instance type

• Under Instance type, select t2.micro and under Key pair (login), choose Create new key pair.

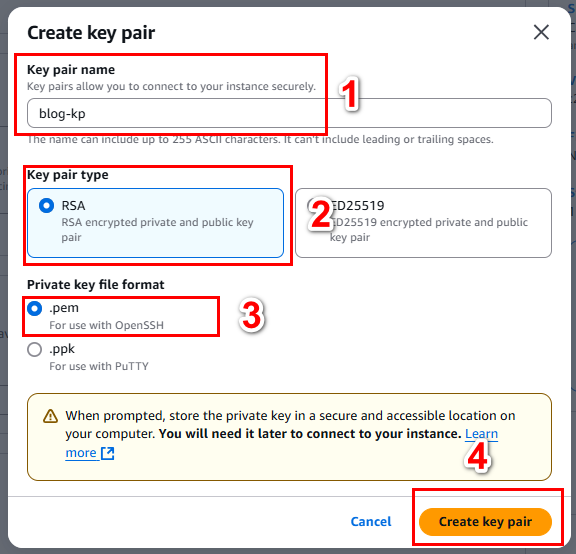

6. Create a Key Pair

• In Create key pair, enter the following details:
  • Key pair name: blog-kp
  • Key pair type: Select RSA
  • Private key file format: .pem
  • Click Create key pair. A .pem file will be automatically downloaded to your device.

7. Configure Security Group

• In Network settings, click Edit. For Security group name, you need to create and select a security group for EC2. Follow these steps:
  • Select Select existing security group.
  • From Common security groups, choose your security group from the list of available security groups.
  • Confirm and launch the instance.
  • Keep the default settings for the rest of your instance configuration.
  • Review the summary of your instance configuration in Summary, and when ready, select Launch instance.

8. Confirm and Check

• A page will notify you that your instance is launching. Click View all instances to return to the console.

• A confirmation page will indicate that your instance is starting. Click View all instances to close the confirmation page and return to the console.

• On the Instances screen, you can monitor the startup status. It may take some time for the instance to boot up. Initially, the status will be pending. Once the instance is running, its status will change to running, and it will receive a public DNS name. If the Public IPv4 DNS column is hidden, click the settings icon (⚙) in the top right corner, enable Public IPv4 DNS, and select Confirm.

• It may take a few minutes for the instance to be ready for connection. Check if your instance has passed the status check; this information is available in the Status check column.

• View the Public IPv4 address under EC2 Instance > Networking > Public IPv4 Address.

9. Connect to the EC2 Instance

• Select the newly created EC2 Instance and click Connect.

• In the Connect to instance interface, select the EC2 Instance Connect tab and click Connect.

• Successfully connected.
