Create Security Group

VPC Security Group

A subnet group is a collection of subnets running on Amazon Virtual Private Cloud (VPC) environment, allows you configure inbound and outbound rules

Create VPC Security Groups

In this step, we will create two Security Groups (SGs): one for public subnets (used by EC2 instances) and one for private subnets (DocumentDB)

2.1. Create Public Security Group (SG Public - EC2)

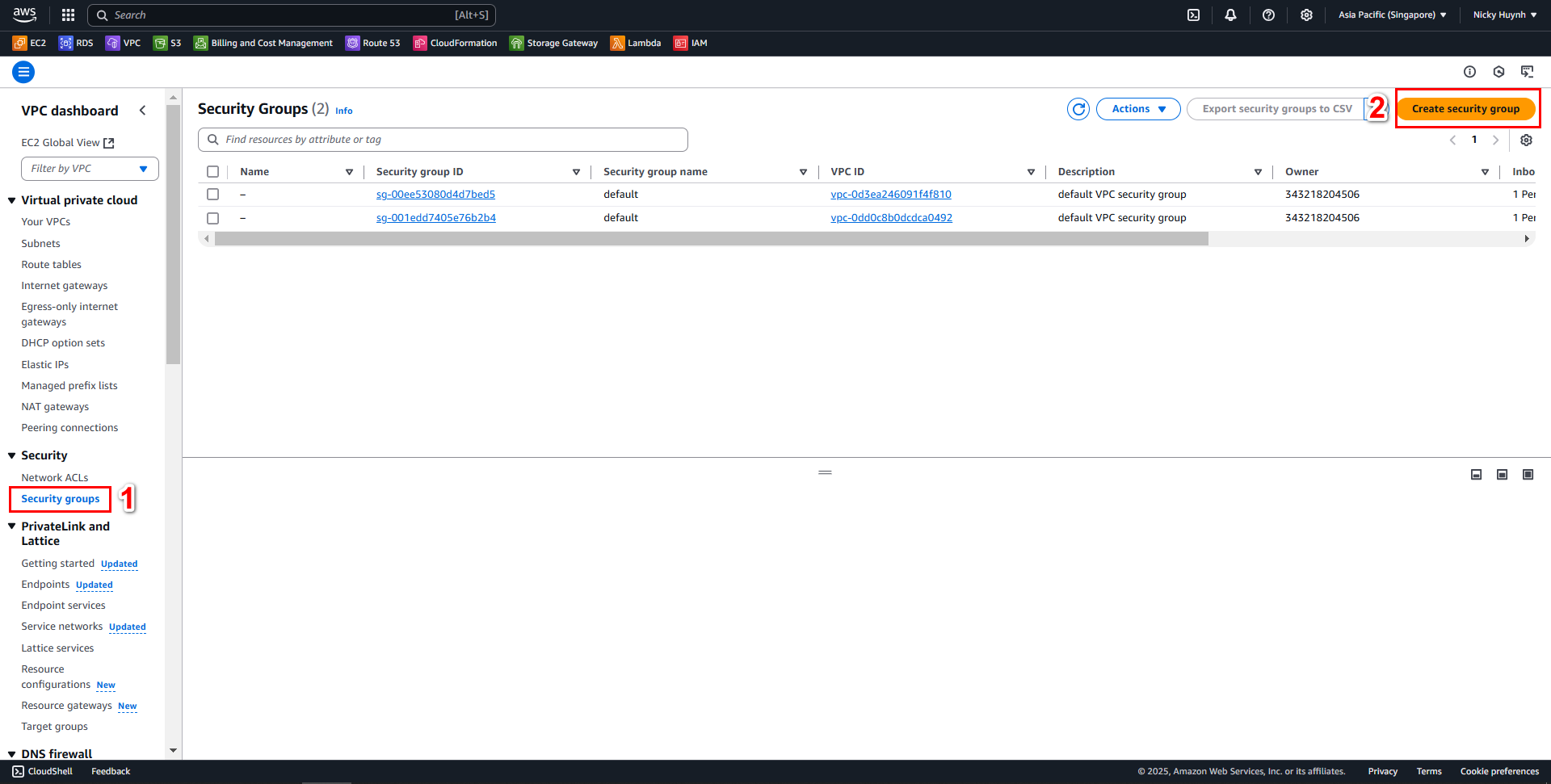

• Go to Security groups and select Create security group

• In the Create Security Group interface, provide the following details for public-sg-ec2:

• Security group name: public-sg-ec2

• Description: Public Security Group for EC2

• VPC: Select your existing VPC

• Add the following Inbound Rules for public-sg-ec2

  Protocol	Port Range	Source	Mô tả
  HTTP	80	0.0.0.0/0	Cho phép truy cập website
  HTTPS	443	0.0.0.0/0	Hỗ trợ SSL/TLS
  SSH	22	0.0.0.0/0	Đăng nhập SSH vào EC2
  Custom TCP	3000	0.0.0.0/0	Chạy Node.js và Express
  Custom TCP	27017	SG-Private-DocumentDB	Cho phép EC2 kết nối DocumentDB
  Custom TCP	8800	0.0.0.0/0	Chạy server trên cổng 8800



• Allow all Outbound traffic and select Create security group

2.2. Create Private Security Group (SG Private - DocumentDB)

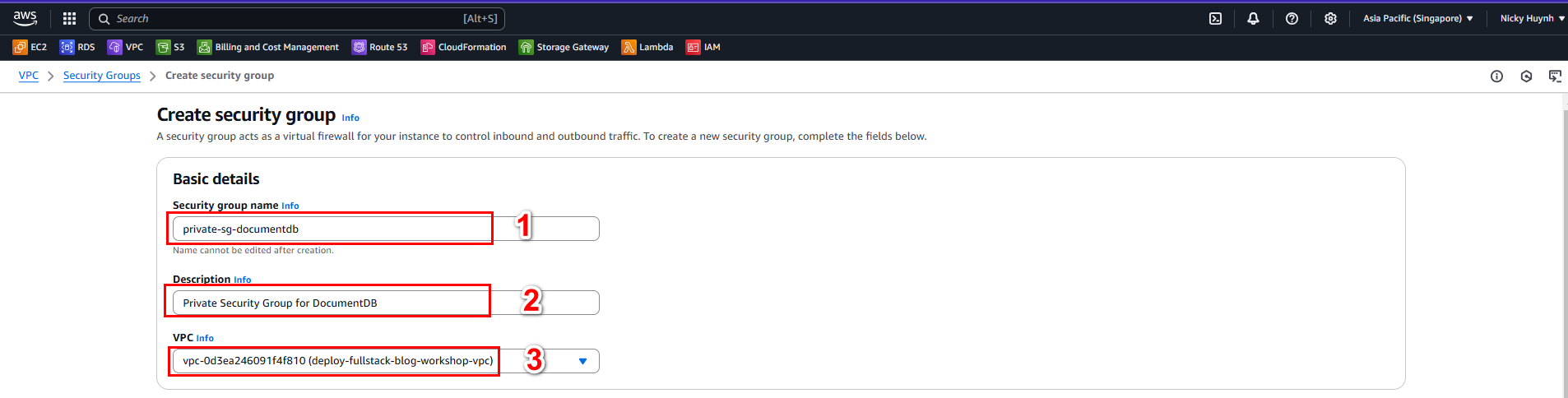

• In the Create Security Group interface, provide the following details for private-sg-documentdb:

• Security group name: private-sg-documentdb

• Description: Private Security Group for DocumentDB

• VPC: Select your existing VPC

• Add the following Inbound Rules for private-sg-documentdb

• Allow all Outbound traffic and select Create security group

2.3 Add Inbound Rules for Port 27017 in public-sg-ec2

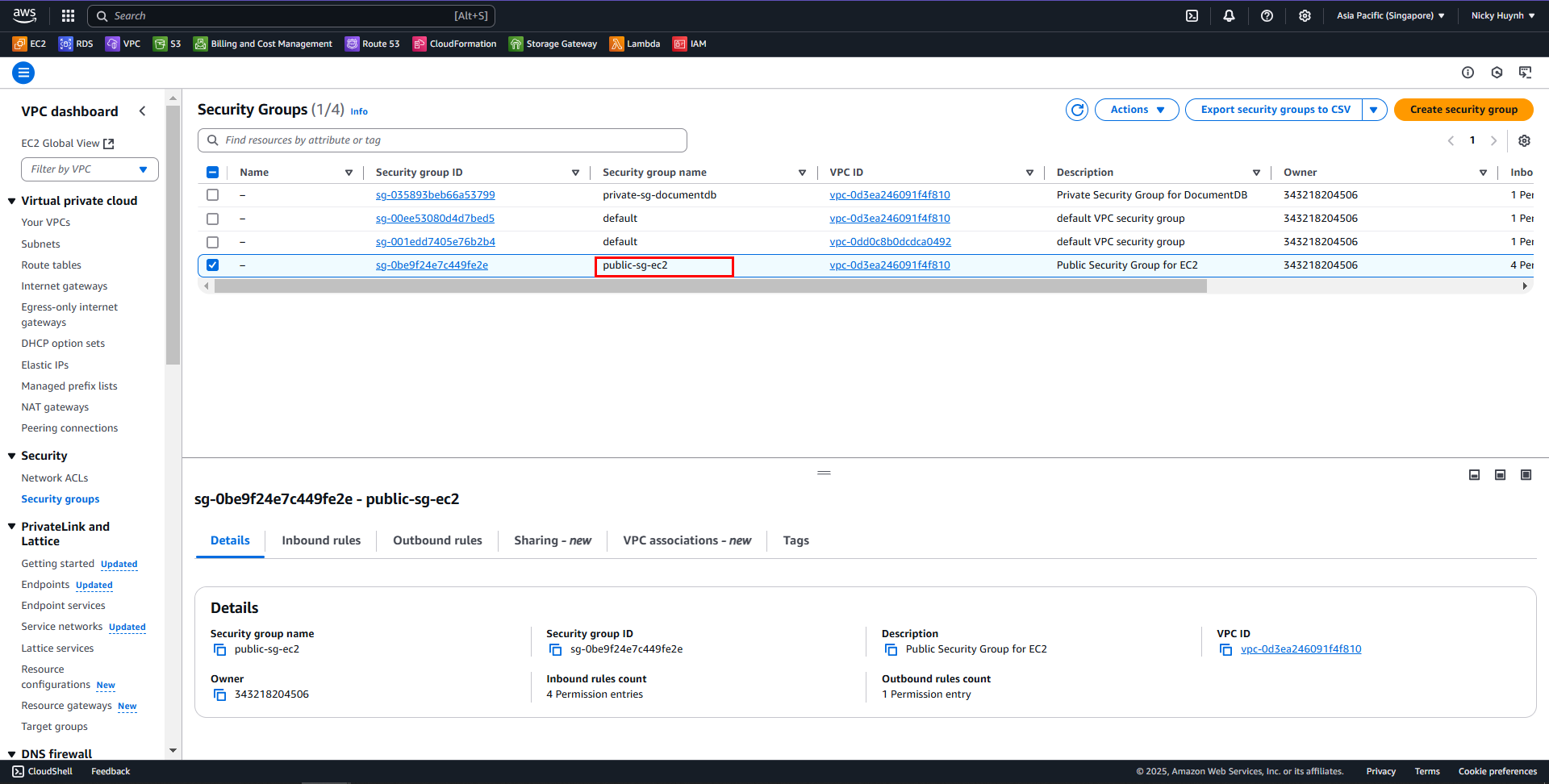

• In the Security Groups interface, select public-sg-ec2

• Then, select Edit inbound rules to add an inbound rule

• Add the inbound rule and select Save rules
