Deploying Linux Elastic Compute Cloud (EC2)

Create a Security Group

A Security Group operates at the subnet level to manage inbound and outbound traffic for resources in the VPC. In this lab, we will:

  • Create a Security Group with inbound rules to allow:
    • SSH (Source: MY IP ADDRESS).
    • ALL ICMP IPv4 (Source: Everywhere).
  • Set outbound rules to allow all traffic.

Steps:

  1. Navigate to VPC Dashboard > Security Groups > Click Create Security Group.

    vpc-dashboard

  2. In the Create Security Group screen:

    • Fill in the Security Group Name and Description.
    • Select the VPC created earlier.
    • Add Inbound Rules:
      • SSH: Source = MY IP ADDRESS.
      • ALL ICMP IPv4: Source = Everywhere.
    • For Outbound Rules, choose All Traffic.

  3. Click Create Security Group.

    create-sg-1
    create-sg-2

  4. A confirmation screen will appear after successful creation.

    create-sg-successfully

Deploy Linux EC2 Instance

Note: For cost savings, use t2.micro (Free Tier). However, in us-east-1, performance may not be adequate. Using t2.medium is recommended for better performance.

Instance Configuration:

  • Type: t2.medium.
  • Resources: 2 vCPU, 4 GB RAM, Medium Network Bandwidth.

Steps to Launch:

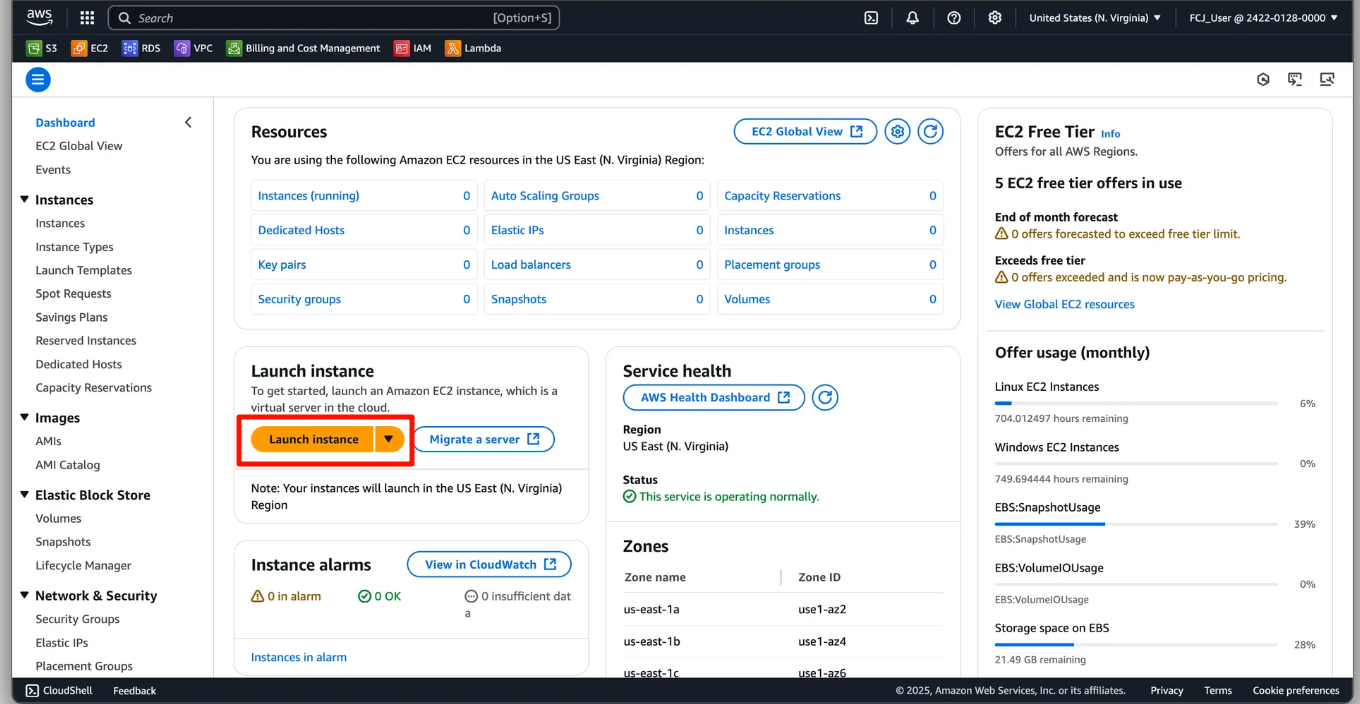

  1. Go to EC2 Dashboard and click Launch Instance.

    launch-ec2-instance

  2. In the Launch an Instance screen:

    • Name and Tags: Enter a name for your instance.
    • Application and OS Images: Select Amazon Linux 2023 AMI.
    • Instance Type: Choose t2.medium.
    • Key Pair: Click Create New Key Pair.

    creating-ec2-1
    creating-ec2-2

  3. In the Create Key Pair dialog:

    • Provide a Key Pair Name, select RSA, and set format to .pem.
    • Click Create Key Pair and save the file to your computer.

    create-key-paris

  4. Network Settings:

    • Select Edit.
    • VPC: Choose the VPC you created earlier.
    • Subnet: Select public1.
    • Enable Auto-assign Public IP.
    • For Firewall, select the Security Group created earlier.

  5. Click Launch Instance.

    network-settings

  6. A confirmation screen will indicate the instance was created successfully.

    create-ec2-successfully

Connect to EC2 Instance via SSH

  1. In the EC2 Dashboard, select the instance and click Connect.
  2. Go to the SSH Client tab and copy the sample SSH command.
ssh -i "demo-s3-tables-kp.pem" ec2-user@ec2-<instance-public-ip>.compute-<region>.amazonaws.com

ec2-ssh

  1. Navigate to the directory containing your key pair file and paste the SSH command into your terminal.

  2. Confirm a successful connection.

    ssh-successfully

Create an IAM Role and Attach to EC2 Instance

Step 1: Create IAM Role

  1. Go to IAM Dashboard > Click Roles > Create Role.

    creating-role

  2. In Select Trusted Entity:

    • Choose AWS Service.
    • Use case: EC2.

    creating-role-interface

  3. In Add Permissions:

    • Add the permissions AmazonS3FullAccess and AmazonS3TablesFullAccess.

    add-permissions

  4. Review and provide a name for the role.

  5. Click Create Role.

    reviewing-and-naming
    create-role-successfully

Step 2: Attach IAM Role to EC2 Instance

  1. Open the instance details, go to Actions > Security > Modify IAM Role.

    ec2-details

  2. In the Modify IAM Role screen:

    • Select the role you just created.
    • Click Update IAM Role.

    update-iam-role

  3. A confirmation message will show a successful role attachment.

    attach-role-successfully
